Brand : TRLON
Noise level : 50 dB at 10m
Product origin : CHINA
Delivery time : 50 days
Supply capacity : 1 Million tons of water
1、YiTchuul line is an open-loop cross flow cooling tower production line with high efficiency, energy saving, water saving, land saving, low noise, reliable and intelligent. It runs very quiet, 10 meters below 50 decibels, no need to do noise reduction. This cooling tower is suitable for installation very close to the house.
2、The excellent performance of tchuul open cross flow cooling tower in water rafting is quite lovely, the drift rate is less than 0.001%, standing near the cooling tower can hardly feel water. What's more, standing 10 meters away can hardly feel the sound.
3、The advantage of tchuul ultra quiet cooling tower is that it does not affect the heat dissipation efficiency, but it has very low noise. It does not install blinds at the air inlet position or muffler at the air outlet. Instead, it uses multi-layer ultra quiet wind blades to operate at low speed. This mode of operation ensures that the air volume is large but the noise is very low.
Hollow Type Axial Fan
Airfoil-shaped hollow blade fans are made from Aluminum extrusion alloy. Fan hubs are fabricated from hot-dip galvanized (HDG) circular plate with epoxy coated cast iron core and Aluminum blade camps. The fan blades are adjustable in pitch to allow for maximum utilization of rated horsepower and optimum performance. Each cooling tower with 3-layer Fan, a total of 21 blades, speed is 120 RPM, the wind can meet the noise is very low.High efficient lower tip speed and light weight design ensure low power consumption and low noise level, thus and guarantee 100% performance.
Magnetic suspension drive system
Thetransmission platform is equipped with shock absorbers to prevent low-frequency transmission.The fan motors are TEFC type with IP55 weather proof, Class E insulation. Fans are driven by vee belt and the speed can be adjusted by changing pulleys to meet different requirement. By locating the motor on top of fan stacks, the vee belt lengths are shorthen thus ensure linger belt life. Motor mounted in the outside air stream and with gear driven system are also available upon request.

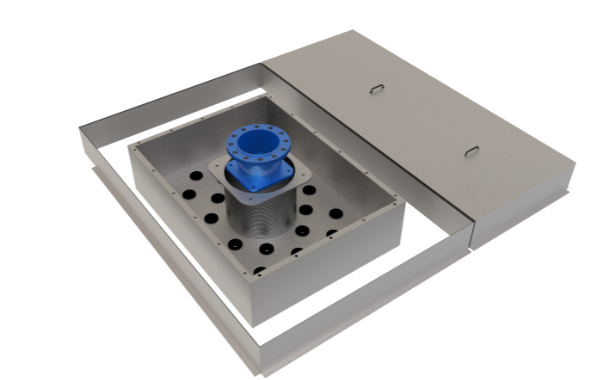

Distribution System
Open gravity fed water distribution basins with removable cover are made of FRP
You can choose 304 stainless steel or galvanized steel) and are designed for non-clogging operation and ease of inspection. Special design diffusion decks are placed on top of filler as a re-distribution layer to ensure full coverage of filler.
High Efficient Filler
Fillers are vacuum formed of 0.4mm (1/64”) thick PVC film. Filler sheets configuration incorporates sloped flutes in both air intake and outlet sections and are high efficient wet deck media. The honeycomb shaped air intake louver section contributes minimum resistance to airflow and prevents ingress of foreign matters. The sloped flutes in the outlet section of filler sheets act as the primary drift eliminators to reduce droplets escaping through the exhaust air stream. Primary drift eliminat or ensures drift loss less than 0.005% of circulating water flow. The wet deck media with continuous triangular pattern is specially designed to provide maximum air/water contact and lower resistance ensuring high efficient heat transfer.
Casing Panels and Cold Water Basin
Casing, basins and fan stacks are made of FRP. The smooth and attractive gel-coat is applied on exterior surface for UV protection, chemical resistance and long life. It is light in weight and makes easier for assembly and transportation. Hot-dip galvanized (HDG) or all Stainless Steel (SS304 or SS316) casing and basins instead of FRP are also available.
Sump Tank
FRP cold water sump tanks contain all connection fittings and make inspection or maintenance of fittings easier. Depressed sump tanks provide basin depth and less chance of pump cavitation.
Steel Structure
All supporting steel members are hot-dip galvanized (HDG) to minimize rust forming and corrosion , ensuring long service life. Stainless steel (SS304 or SS316) hardware members are also available upon request.
Inspection Door
Inspection door is furnished to provide convenient access to the interior for inspection, maintenance, adjustment of float valve, cleaning of the lift-out strainer and flushing of the basin
1、Desined with a more robust tower structure,make the cooling tower more durable.
2、Deepened the depth of the water collecting basin to prevent water leakage and drain.
3、Equipped with optional intelligent electrical control cabinets.
4、Desined larger tower body so area of filling is larger, which means better heat dissipation performance.
5、 Fillings with patent, better on heat dissipation
6、Rich models of the nozzles are used in TCH.
7、Positive triangle arrangement designed for the nozzles. According to the hydraulic characteristics of different nozzles, combined with the actual operating level change of the basin, the spacing and number of the nozzles are reasonably optimized to ensure uniform water distribution and full heat exchangere of the fillers.
8、More accurate testing and more model choices allow customers to choose the one they need most without worrying about thermal performance.
9、Noise control measures with test and simulation,create a more quiete enviroment.
10、Excellent Anti-drift Desin.Drive System provide variable options on Motors and more durable with accurate reducer,anti-skid belt, imported NSK bearing.
